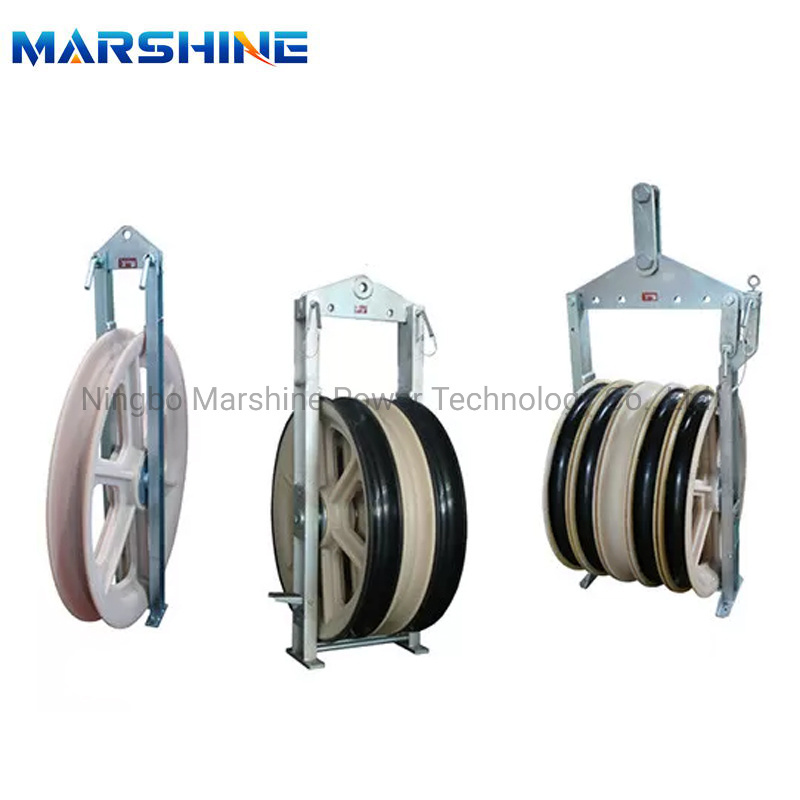

1040mm Large Diameter Stringing Block With 3 Sheaves And 50K-180kn Rated Load
This 1040mm Large Diameter Stringing Block has the conductor
diameter of no more than LGJ1120. That is to say, the aluminum of
this conducting wire can possess the maximum cross section of 1120
square millimeters. The block dimension (outside diameter*root
diameter*sheave width) is Φ1040×Φ900× 125 (mm).
Main Specifications
Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
10165 | SHDN1040 | 1 | 50 | 60 | MC nylon sheave |
10166 | SHSQN1040 | 3 | 105 | 200 | Middle: MC nylon sheave Conductor: rubber coated nylon sheave |
10167 | SHWQN1040 | 5 | 180 | 330 |
Notes:
1.Maximum suitable conductor ACSR1120.
2.Sheave dimension(outside diameter x root diameter x sheave width)
is Ф1040 x Ф900 x 125 mm.
3.The rubber lined MC nylon sheave are completely lined,half lined
sheave can be customized.
![]() |
