Brand Name : | MARSHINE |
Certification : | CE |
Delivery Time : | 15-30DAY |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 20000PCS/Month |
Model Number : | 1160 |
Price : | usd, 300-600 , set |

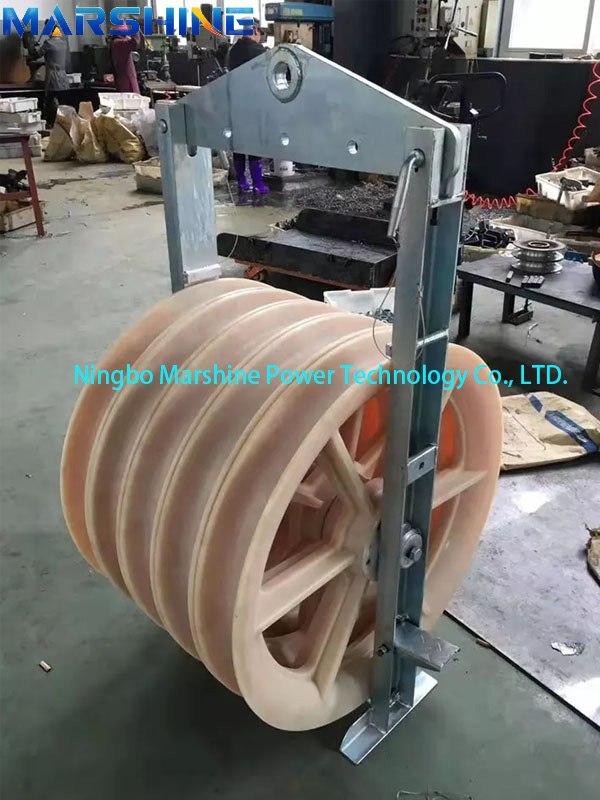

1160mm Large Diameter Wheels Power Pulley Cable Stringing Block For
Conveyer Equipment
Applications
Large stringing blocks are primarily used in the installation of high-voltage transmission lines. They facilitate the safe and efficient stringing of conductors over long distances, often spanning across valleys, rivers, and other challenging terrains.
They are also employed in the installation of communication lines, including fiber optic cables, ensuring minimal tension and preventing damage during the installation process.
In large infrastructure projects, such as bridges or large buildings, these blocks are used to guide and support cables and wires, ensuring accurate and safe installation.
Product specification
Item number | Model | Number of sheave | Rated load (kN) | Weight (kg) | Feature |
10168-1 | SHDN1160 | 1 | 60 | 65 | Middle :MC nylon sheave |
10168-2 | SHSQNK1160 | 3 | 120 | 220 | Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave |
To support the Transmission work, Marshine Power has Hydraulic Cable Tensioner , Hydraulic Cable Puller, Cable Winch Puller, Cable Drum Trailer,Cable Conveyor, Conductor Pulley, Pulley Tackle all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
![]() |
