Brand Name : | MARSHINE |
Certification : | ISO |
Delivery Time : | 15-30DAY |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 2000sets/Day |

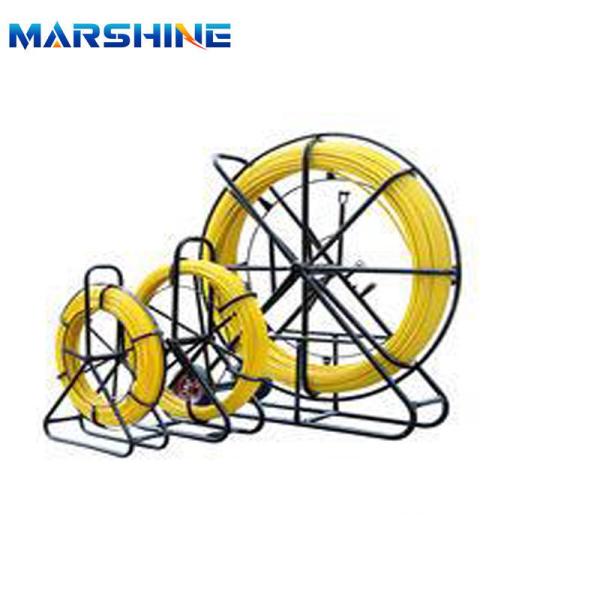

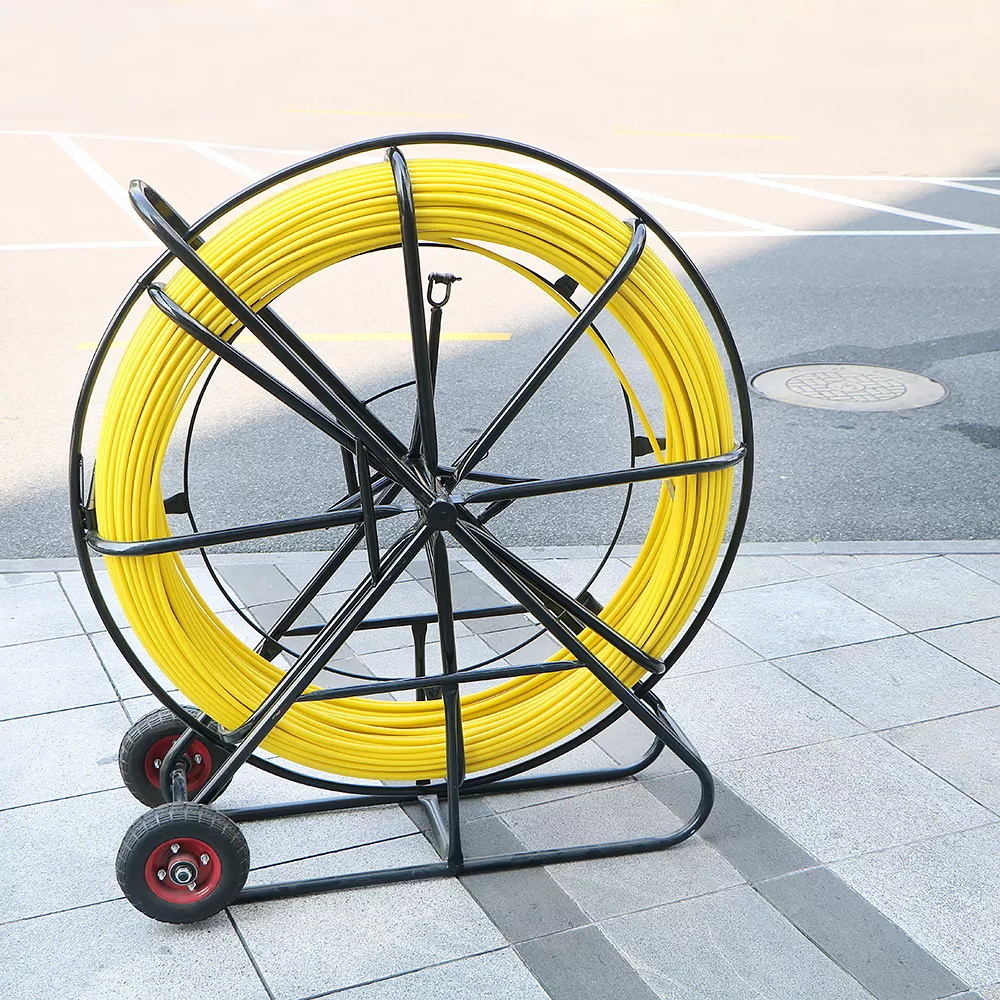

FRP Traceable Fishtape Fiberglass
Fiberglass duct rodder is selected as a special tool for pulling
electric cables and optical fiber cables in telecom, power
industries, buildings and many other fields. The rod is made of
fiberglass and high strength resin at high temperature, it is
coated by high density polyethylene engineering plastic as its
protected layer, which makes the duct rodder cover sliding on
surface, durable, corrosion resistant and has good insulation
performance, these make it safe for using in cable occupied duct.
Along with pull head and handcart, it features easy to move and
operate.The FRP push pull rod will be equipped with different size
of reels in accordance with the length of the rod, there are wheels
on the reel to make it convenient for moving, it is an ideal tool
for laying cables.
Detailed Data
Fiber Glass Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
Fiber Glass Rod Outer | High Density polyethylene coating |
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized |
Physical Property | |
Fiber Glass Content | 75-80% |
Density | > 1.9gr/cm3 |
Working Environment | -40ºCto +80ºC |
Minimum Pulling Strength | 4000N +/-5% |
Consistency Of Rod | 137gr/m |
Flexural Modulus | > 46.500Mpa |
Elongation At Break | 2.5-3% |
Min Bending Radius | 388mm |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic cable puller, wire rope pulley block, hoisting tackle, Wire rope gripper, Cable reel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
![]() |
