Cable Drum Reel Rotator Platform
Our HZT series reel turning platform has been consistently utilized
as a deployment device for cable reels. It is suitable for cable
laying operations in industries such as power and communication.

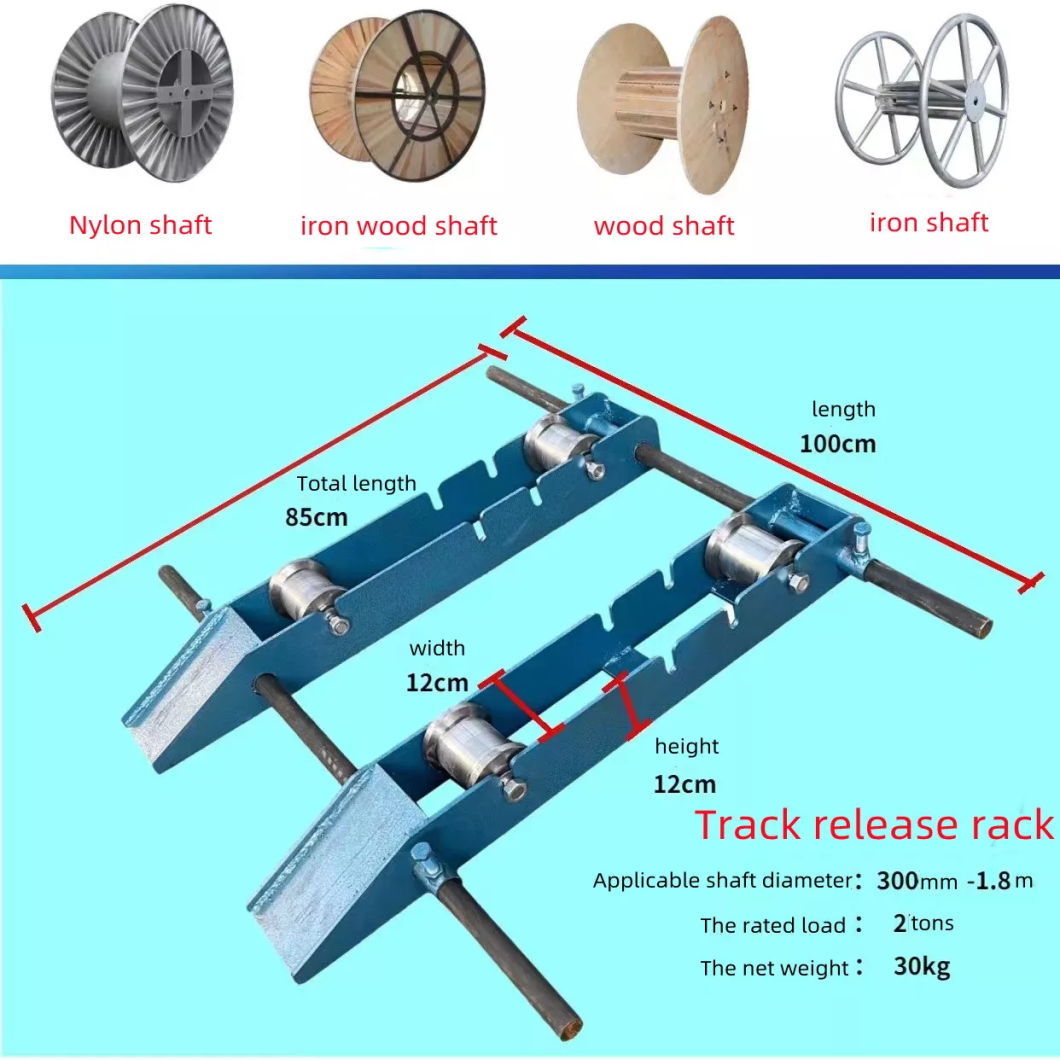

This product primarily consists of a turntable, rollers, roller
shafts, and locking fixtures. The rollers are equipped with rolling
bearings internally, allowing for smooth rotation and flexible reel
handling during operation.
Product Specification
| Item Number | 21533 | 21552 | 21551 |
| Model | HZT1250 | HZT1800 | HZT2500 |
| Diameter of Applicable Reel (mm) | Φ500~Φ1250 | Φ500~Φ1800 | Φ500~Φ2500 |
| Maximum Weight of Reel (kg) | 500 | 1500 | 1500 |
| Dimensions (mm) | 470×172×105 | 650×150×145 | 900×230×130 |
| Weight of Single Piece (kg) | 17 | 40 | 73.5 |
Usage instructions:
1. First, position the two platforms according to the width of the
reel.
2. Next, lock the rollers closest to the slope.
3. Third, adjust the position of the rollers according to the
diameter of the reel.
4. The reel must be pushed onto the platform along the slope.
5. The final step is to release the locked rollers, allowing the
reel to rotate freely.
To support transmission operations, Marshine Power offers a
comprehensive range of equipment including tubular stringing
rollers, hydraulic cable pullers, wire rope pulley blocks, lifting
pulleys, wire rope grips, cable drum winding shafts, and stands.
All of these products are OEM and professionally manufactured,
meeting ISO 9001:2008 standards, and are distributed to over 50
countries worldwide. We provide customization for certain projects
such as emergency tower repairs and cross structures, as well as
safety tools and accessories, with no minimum order requirement. We
offer free assistance with technical inquiries or product
requirements. Please feel free to reach out to us. Thank you.
