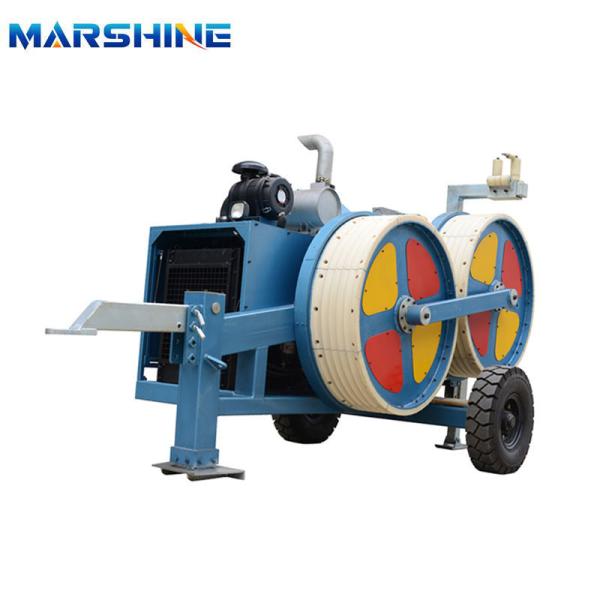

80KN Overhead Line Hydraulic Puller Tensioner Transmission Line
Cable Stringing Equipment
Our MAR-YZ2×40B Hydraulic Tensioner is designed to facilitate the
stringing of various types of conductors and earth wires, offering
the flexibility of both one-pull-one and one-pull-two
configurations.
Featuring an infinitely variable tension control system, the
MAR-YZ2×40B enables constant-tension conductor stringing
operations, ensuring precise and consistent performance. In the
event of a hydraulic failure, the built-in spring-applied
hydraulically released multi-plate brake engages automatically,
enhancing operational safety.
Moreover, our product is equipped with two sets of hydraulic power
output interfaces, allowing seamless connection to hydraulic
conductor reel stands for enhanced efficiency. The bullwheel is
specially lined with wear-resistant MC nylon material, ensuring
durability and reliable performance in various conditions.
Usage:
Ideal for stringing various conductors and earth wires, suitable
for both single conductor or two bundle conductor applications.
Features:
1. The bull wheel is fortified with wear-resistant MC nylon lining
segments for extended durability.
2. Experience precise tension control with our infinitely variable
tension system, ensuring consistent conductor stringing.
3. Prioritizing safety, our hydraulic release brake automatically
engages in the event of hydraulic failure.
4. Seamlessly connect to hydraulic conductor reel stands via the
two attached sets of hydraulic power output interfaces.
Essential Parameters
| Model |
MAR-YZ2*40B Hydraulic Tensioner |
| Maximum Tension (kN) |
2× 40 or 1× 80 |
| Continuous Tension (kN) |
2× 35 or 1× 70 |
| Maximum Speed (km/h) |
5 |
| Bullwheel Bottom of Groove Diameter (mm) |
Φ1500 |
| Number of Grooves |
2× 5 |
| Maximum Pullback (kN) |
2× 40 or 1× 80 |
| Maximum Speedback (km/h) |
2× 1.5 |
| Maximum Diameter of Suitable Conductor (mm) |
Φ40 |
| Engine Power / Speed (kW/rpm) |
51/2500 |
| Dimensions (mm) |
4500 × 2200 × 2800 |
| Weight (kg) |
4850 |
Main Components| Engine |
Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth |
| Reducer |
RR (Italian) |
| Main Hydraulic Valve | Rexroth |
| Radiator |
AKG |
| Hydraulic Instrument | WIKA |
| Option |
If use Deutz (Germany) diesel engine,the model is MAR-YZ2×40A,item
number:07191 |
| Others |
As per customer specifications, our MAR-YZ2×40B Hydraulic Tensioner
can be equipped with mobile control consoles upon request. This
feature allows one operator to effortlessly control two machines
simultaneously, streamlining the process for conducting 4-conductor
stringing operations using two machines. The control consoles are
identified by the item number 07193. |
