Brand Name : | MARSHINE |
Certification : | CE, ISO |
Delivery Time : | 15-30DAY |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 100 Sets Per Month |
Model Number : | MAR-YZ2×40B |
Price : | US$10000-US$100000 |

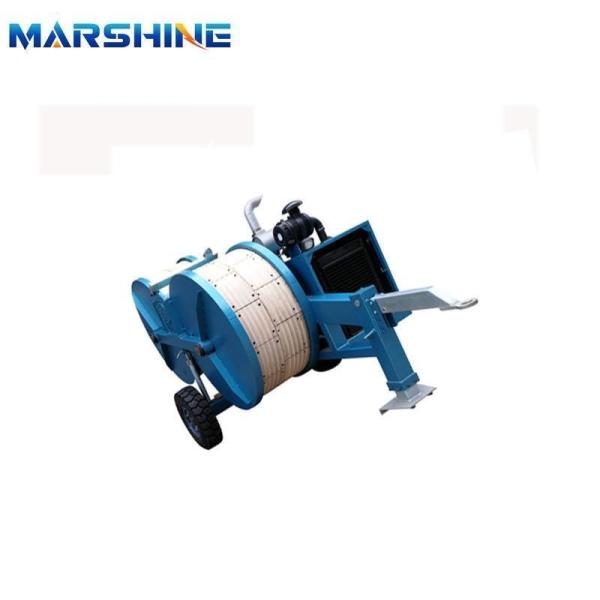

Hydraulic Tensioner Wheel Cable Pulling Equipment
Our MAR-YZ2×40B Hydraulic Tensioner is engineered for stringing a variety of conductors and earth wires. It offers both single-pull and double-pull capabilities.
Featuring an infinitely variable tension control system, the MAR-YZ2×40B ensures consistent tension during conductor stringing operations. In the event of hydraulic failure, the spring-applied, hydraulically released multi-plate brake automatically engages, ensuring safe operation.
Moreover, our product is equipped with two sets of hydraulic power output interfaces, enabling seamless connection with hydraulic conductor reel stands. The bullwheel is specially lined with wear-resistant MC nylon material for enhanced durability.
Application: Ideal for stringing various conductors and earth wires, suitable for single conductor or double bundle conductor applications.
Feature:
1. The bull wheel is equipped with wear-resistant MC nylon lining
segments for enhanced durability.
2. Benefit from infinitely variable tension control, ensuring
consistent tension for conductor stringing operations.
3. Safety is paramount with the automatic engagement of the
spring-applied hydraulic release brake in the event of hydraulic
failure.
4. Connect seamlessly to hydraulic conductor reel stands with the
inclusion of two sets of hydraulic power output interfaces.
Essential Parameters
Model | MAR-YZ2*40B Hydraulic Tensioner |
Maximum Tension (kN) | 2× 40 or 1× 80 |
Continuous Tension (kN) | 2× 35 or 1× 70 |
Maximum Speed (km/h) | 5 |
Bullwheel Bottom of Groove Diameter (mm) | Φ1500 |
Number of Grooves | 2× 5 |
Maximum Pullback (kN) | 2× 40 or 1× 80 |
Maximum Speedback (km/h) | 2× 1.5 |
Maximum Diameter of Suitable Conductor (mm) | Φ40 |
Engine Power / Speed (kW/rpm) | 51/2500 |
Dimensions (mm) | 4500 × 2200 × 2800 |
Weight (kg) | 4850 |
Engine | Beinei Deutz air cooled diesel engine |
Main Pump/Motor | Rexroth |
Reducer | RR (Italian) |
Main Hydraulic Valve | Rexroth |
Radiator | AKG |
Hydraulic Instrument | WIKA |
Option | If use Deutz (Germany) diesel engine,the model is MAR-YZ2×40A,item number:07191 |
Others | In response to customer needs, our MAR-YZ2×40B Hydraulic Tensioner can be equipped with mobile control consoles. This setup enables a single operator to conveniently manage two machines concurrently, streamlining the process of conducting four-string conductor operations using two machines. The control consoles are identified by the item number 07193. |
