    Conductor Hydraulic Cable Tensioner Puller For Overhead Transmission Line

    Ask Lasest Price
    Brand Name : MARSHINE
    Certification : CE, ISO
    Delivery Time : 15-30DAY
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 Sets Per Month
    Model Number : MAR-YZ2X70
    Price : US$10000-US$100000
    • Product Details
    • Company Profile

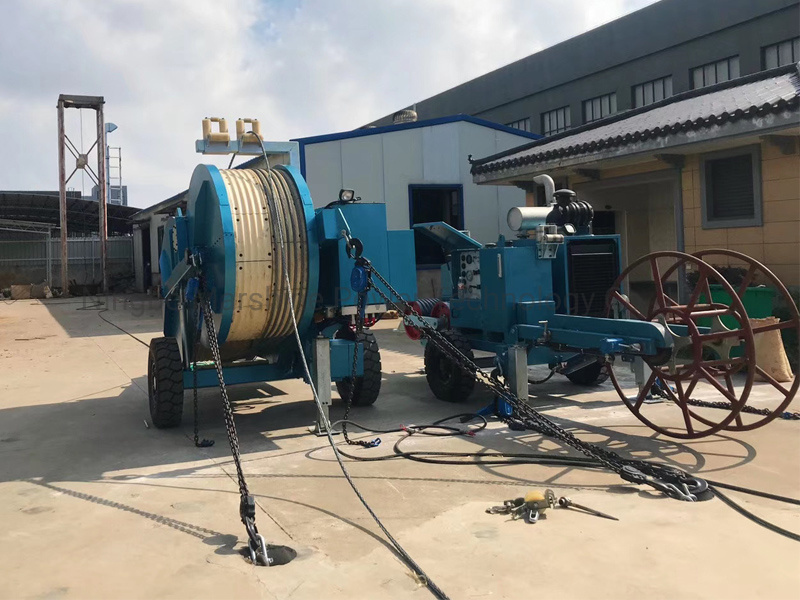

    Conductor Hydraulic Cable Tensioner Puller For Overhead Transmission Line

    Hydraulic Conductor Tensioner 14 Ton Tension Stringing Equipment

    Product Description

    Our MAR-YZ2×70 / MAR-YZ2×80 Hydraulic Tensioner is engineered with a spring-applied hydraulically released multi-plate brake, providing autonomous functionality to address hydraulic failure scenarios and enhance operational safety. Furthermore, our product features dual sets of hydraulic power output interfaces, facilitating seamless connection with hydraulic conductor reel stands.

    The bullwheel of our hydraulic tensioner is equipped with wear-resistant MC nylon lining segments, ensuring durability and reliability. With an infinitely variable tension control system, our product enables consistent tension stringing operations, ensuring optimal performance.


    Application:
    Designed for stringing various conductors and earth wires, suitable for single conductor or two bundle conductor stringing.

    Key Features:
    1. Bull wheel features wear-resistant MC nylon lining segments.
    2. Offers infinitely variable tension control for consistent tension stringing of conductors.
    3. Equipped with a spring-applied hydraulic released brake for automatic engagement in case of hydraulic failure, ensuring safety.
    4. Comes with two sets of hydraulic power output interfaces for seamless connection with hydraulic conductor reel stands.


    Product Parameters

    Essential Parameters

    Item Number
    07198
    07199
    Model Number
    MAR-YZ2×70
    MAR-YZ2×80
    Maximum Tension (kN)
    2×70 or 1×140
    2×80 or 1×160
    Continuous Tension(kN)
    2×65 or 1×130
    2×75 or 1×150
    Maximum Speed (km/h)
    5
    Bullwheel Bottom of Groove Diameter (mm)
    Φ1700
    Number of Grooves
    2× 5
    Maximum Pullback (kN)
    2× 63 or 1× 126
    Maximum Speedback (km/h)
    2× 1.6
    Maximum Diameter of Suitable Conductor (mm)
    Φ45
    Engine Power /Speed (kW/rpm)
    82.5/2500
    Dimensions (mm)
    5300× 2300 × 2900
    Weight (kg)
    8500

    Main Components
    Engine
    Deutz (Germany) air-cooled diesel engine
    Main Pump/Motor
    Rexroth
    Main Hydraulic Valve
    Rexroth
    Reducer
    RR (Italian)
    Hydraulic Conductor Tensioner 14 Ton Tension Stringing Equipment

    Marshine Power is committed to supporting transmission projects with a comprehensive range of equipment. Our offerings include Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. All of our products are OEM and manufactured to the highest standards in accordance with ISO 9001:2008 regulations. Trusted by customers in over 50 countries worldwide, our equipment ensures reliable performance.

    We understand the unique requirements of transmission projects, which is why we offer customization options for items such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories are available without minimum order quantities.

    Whether you need assistance with technical issues or have specific product requirements, our team is here to help. Please feel free to reach out to us for support. Thank you for considering Marshine Power as your partner for transmission equipment needs.

    Hydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing Equipment
    Hydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing EquipmentHydraulic Conductor Tensioner 14 Ton Tension Stringing Equipment
    FAQ



    1. Training and services.
    Marshine is a company specializing in the development, design and manufacture of electrical construction equipment and tools. We not only manufacture and sell international standard products, OEM and custom products, but also provide quality tracking and service monitoring.

    2. How about the quality of your products?
    Our products are manufactured in strict accordance with national and international standards, and each product is tested before delivery. If you would like to view our quality certification and various test reports, please consult us.

    3. Why do you choose us?
    Because we can provide you with excellent service, quality and reasonable price. In addition, we can also provide smooth delivery of goods, excellent customer solutions.

    4. Customer inquiry.
    If there is an emergency, customers can also use online contact methods (online Chat, Skype, WhatsApp, wechat) for faster and better communication. Any enquiry will be answered within 12 working hours.

    5. How to obtain samples?
    We can provide free samples to the buyer for testing, but the buyer needs to pay the freight. Existing samples take 2-3 days. If there is no stock, we will advise the delivery date.

    6. How about packing and shipping?
    All goods will be packed in plywood boxes for safe, long haul transport. Support EXW, FOB, CIF, CFR terms.
    Required documents such as packing list, commercial invoice, bill of lading, air waybill, CO, Form E, Form F etc will be provided.


    Note: If you do not find the product you need, please feel free to contact us. We will provide the best quotation as soon as we verify your requirements.
