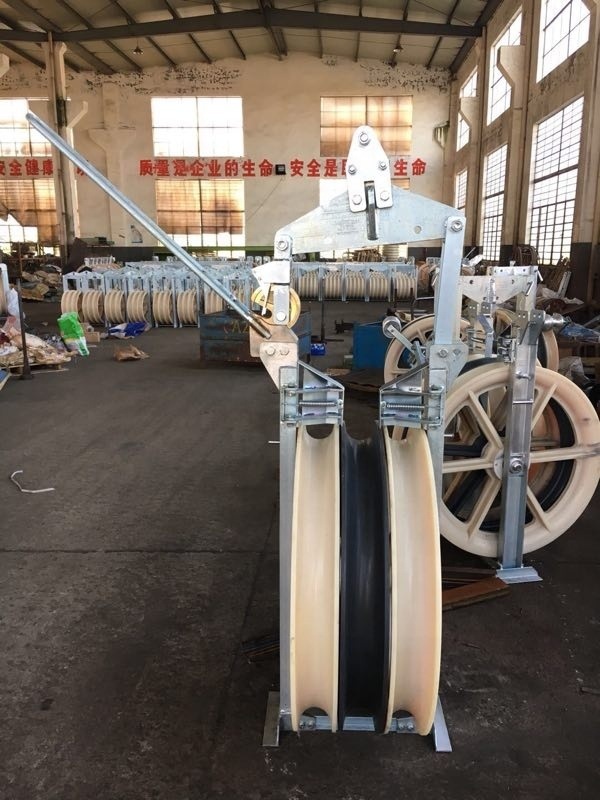

Heavy Duty Transmission Line Construction Pilot Wire Aerial
Helicopter Stringing Block
Helicopter stringing block is suitable for the stringing of various
overhead conductors in tangent structures. Compression sleeves,
swivel joints, and pulling rope joints can pass through the groove.
The axle is made of either aluminum alloy or high-strength nylon.
Product Parameters
main specification
Item No. | Model | Number of Sheave | Suitable Conductor | Rated Load (KN) | Weight (kg) | Remark |
10171Z | SHDZ-120x30 | 1 | ACSR25-70 | 5 | 2 | Aluminium sheave |
10172Z | SHDZ-160x40 | 1 | ACSR70-95 | 10 | 3.2 |
10173Z | SHDZ-200x40 | 1 | ACSR95-120 | 15 | 3.8 |
10174Z | SHDZ-200x60 | 1 | ACSR120-150 | 15 | 4.2 |
10175Z | SHDZ-250x40 | 1 | ACSR120-150 | 20 | 5.2 |
10176Z | SHDZ-250x60 | 1 | ACSR150-180 | 20 | 5.5 |
10177Z | SHDZ-270x60 | 1 | ACSR180-240 | 20 | 6.8 |
10178Z | SHDZ-320x60 | 1 | ACSR240-300 | 20 | 10.5 |
10179Z | SHDZ-400x80 | 1 | ACSR300-400 | 20 | 12 |
10101Z | SHDZ508 | 1 | ACSR300-400 | 20 | 18 | Rubber lined aluminium sheave |
10121Z | SHDZ660 | 1 | ACSR400-500 | 20 | 30 |
10191Z | SHDNZ-120x30 | 1 | ACSR25-70 | 5 | 1.5 | Nylon Sheave |
10192Z | SHDNZ-160x40 | 1 | ACSR70-95 | 10 | 2.4 |
10193Z | SHDNZ-200x40 | 1 | ACSR95-120 | 15 | 2.6 |
10194Z | SHDNZ-200x60 | 1 | ACSR120-150 | 15 | 3.1 |
10195Z | SHDNZ-250x40 | 1 | ACSR120-150 | 20 | 3.7 |
10196Z | SHDNZ-250x60 | 1 | ACSR150-180 | 20 | 3.9 |
10197Z | SHDNZ-270x60 | 1 | ACSR180-240 | 20 | 4.4 |
10198Z | SHDNZ-320x60 | 1 | ACSR240-300 | 20 | 7.5 |
10199Z | SHDNZ-400x80 | 1 | ACSR300-400 | 20 | 8 |
10104Z | SHDNZ508 | 1 | ACSR300-400 | 20 | 16 | Nylon sheave, rubber lined nylon sheave can be customized |
10124Z | SHDNZ660 | 1 | ACSR400-500 | 20 | 24 |
10131Z | SHDNZ750 | 1 | ACSR500-600 | 30 | 32 |
10141Z | SHDNZ822 | 1 | ACSR600-700 | 30 | 38 |
10151Z | SHDNZ916 | 1 | ACSR700-800 | 50 | 51 |
10165Z | SHDNZ1040 | 1 | ACSR800-900 | 50 | 60 |
Note:
1. Aluminum alloy pulleys of 508mm and 660mm can be lined with
rubber.
2. Nylon pulleys of 660mm, 822mm, 916mm, and 1040mm can be lined
with rubber.
3. Three-axis and five-axis helicopter stringing frames can be used
for stringing two bundles of conductors and four bundles of
conductors.
